Since 1954 PerMix has been leading the industry in Plow Mixer technology, manufacturing Vale Added Engineered products that outperform our competitors, offer the best warranty, while also guaranteeing the best price.

PerMix Vertical Ribbon Mixer Introduction

PerMix Ribbon Mixers lead the industry in technology, performance, and value. PerMix Ribbon Mixers are available in two types, Horizontal Ribbon Mixers and Vertical Ribbon Mixers. Both our Horizontal Ribbon Mixers as well as our Vertical Ribbon Mixers are available in capacities from 1 liter to 30,000 liters, and have options that are endless.

PerMix PRB series Ribbon Mixer are efficient and versatile blending machine for mixing of dry powders, granules and viscous pastes homogeneously. It is able to give a satisfying “homogeneity grade” for mixing jobs due to the special design of a mixingagitator with dual ribbons inside of a U-shaped working trough.

The PerMix PVR series Vertical Ribbon Mixer has a similar appearance with the popular Ribbon Mixer, but stands vertically. It is an efficient and versatile blending machine for batch mixing of free-flowing powders. The PerMix PVR series Vertical Ribbon Mixer is able to give perfect result for mixing due to the innovative design of an outer spiral type mixing element with an inner reverse direction screw, rotating together into a conical shape trough allowing a perfect discharge of the mixed material.

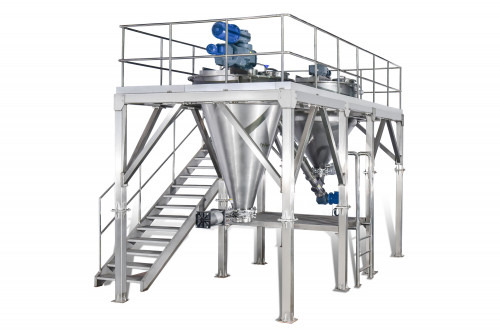

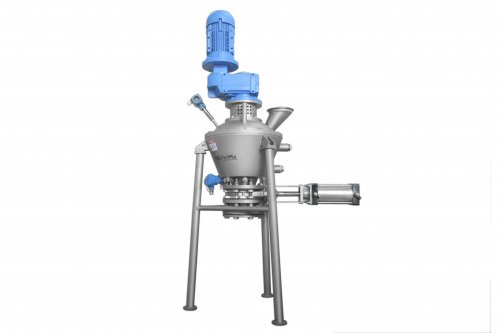

The construction of PerMix PVR series Vertical Ribbon Mixer is very compact: it consists of a cone vessel with the drive unit on the top and discharge valve at the bottom, and a tapered ribbon mounted on the central shaft. In the cone vessel, there is a central tapered ribbon with very small clearance between its edge and the wall. The ribbon moves the materials upward along the vessel wall to the top, where the materials then drop by gravity into the center. During this continuous operation, material particles and heat are exchanged quickly which leads to a homogeneous product. Besides, the material particles are mixed with minimal mechanical and thermal stress, which makes this type of mixer a good solution for fragile and heat sensitive product.

  1. High level of accuracy with minor component ratio to be 1:100,000
  2. Gentle mixing for sensitive materials without generation of heat
  3. No minimal batch size required
  4. Full discharge with minimal residue
  5. Easy to clean in either dry or wet applications
  6. High heat transfer rate, ideal for heating or cooling process of the powders
  7. Chopper can be installed for intensive mixing and lump breaking

  1. Ribbon Design:
    We offer several types of spiral ribbons for different sizes and applications.
  2. Construction Material & Sanitary Finishes:
    We are able to offer our Ribbon Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Standard of internal and external finish can be adopted to the customer’s needs. For abrasive materials we offer hardened steel as the contact part. Multiple types of finishes are available also, including sanitary type & even electro-polishing with proof of passivation.
  3. Feeding & Discharge Options:
    Ribbon Mixers can have a variety of feeding & discharging methods that match the demands of the filling & production line.
  4. Drive Systems:
    Ribbon Mixers have a drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
  5. Heating & Cooling Jackets:
    Ribbon Mixers are available with jackets for heating / cooling operation, including ASME, ATEX, & CRN certified jackets.
  6. Vacuum Drying & Deaeration:
    Ribbon Mixers can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
  7. Ribbon Mixer Spray Nozzles:
    Liquid can be added into the powder by spray nozzles in any of our Ribbon Mixers
  8. Custom Engineered Dimensions:
    Dimensions of our Ribbon Mixers can be defined according to customer’s requirements.
  9. Ribbon Mixer Sizes:
    Ribbon Mixers from 5 to 30000 lit. total volume with bigger size as per request &. more…

For the latest info on customers, applications, & global installations, visit our blog or visit us on LinkedIn.
